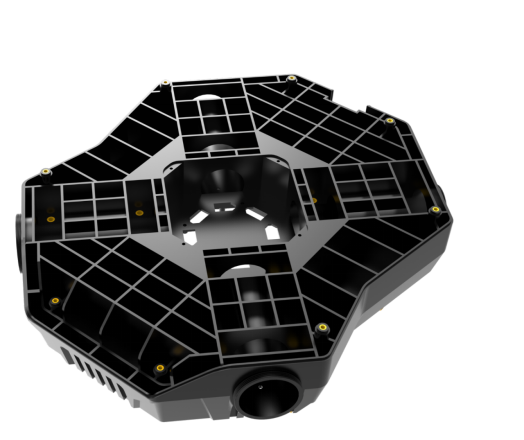

Strong Structure
strong and durable
is simple without leakage

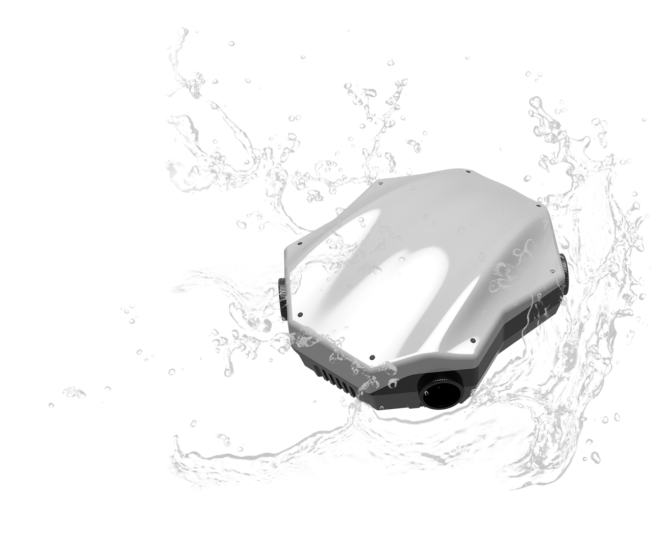

IP54 Dustproof and waterproof

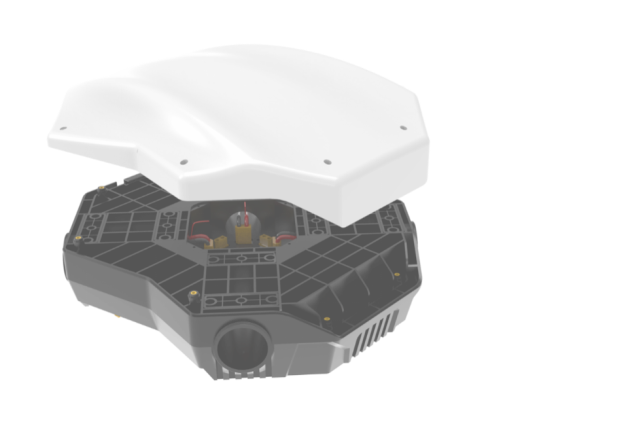

The upper and lower covers of the whole machine body are sealed to effectively take out the dust-proof and waterproof effect.
Moulding Folding Parts
The new folding part adopts the integrated injection molding process, and the arm is covered with plastic structure, which is not easy to loosen and is more stable and durable.

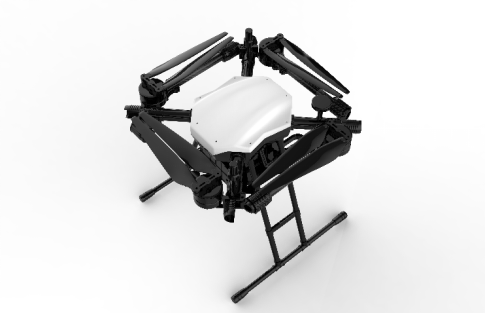

Encircling Folding
Classic surround folding design, simple and practical, reducing transportation space.
Techical Info
Detailed Images
Certifications
Item | Specifications | Remark |
Size(unfold) | 1090*1090*640mm | Not include propellers |
Size(folded) | 640*640*640mm | |
Motors Quantity | 4 | |
Propeller | 30inch | |
Empty Weight | 17KG | Including battery |
Max Take Off Weight | 22KG | |
Battery | 14S 30000mAh Lipo Battery | |
Hover(without payload) | ≥45min | |
Hover(Full payload) | ≥17min | |
Max Fly Height | 3000m<5000m | |
Max Flying Speed | 15m/s | |
Frequency | Support 1.4GHz | |
Waterproof Level | IP54 | |
Work Temperature | -20~50℃ | |
Anti Wind | 7 level | |
Store Temperature | -15~45℃ |
Service
Supply the 24 hours after-sales service and one year warranty service.
