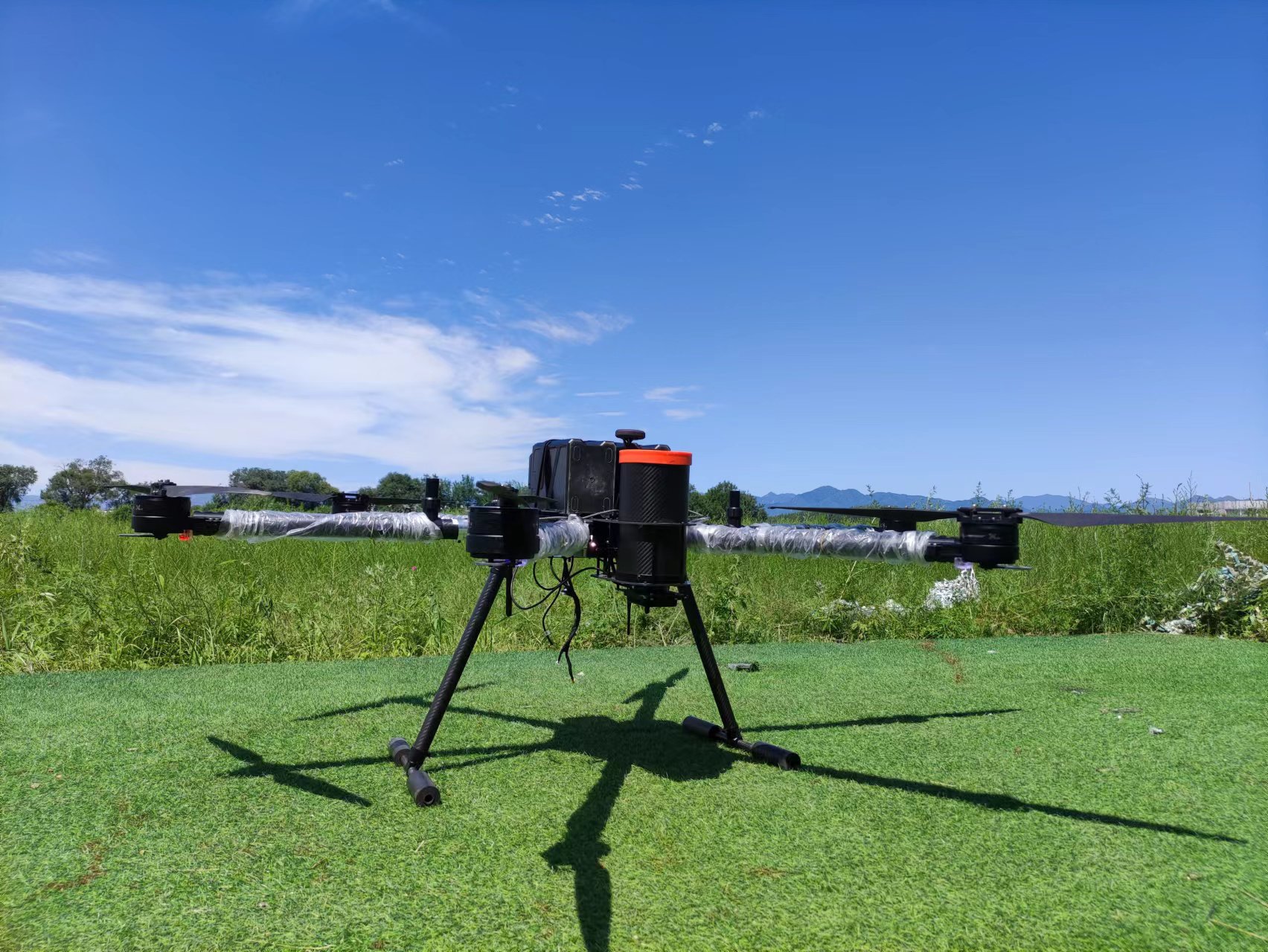

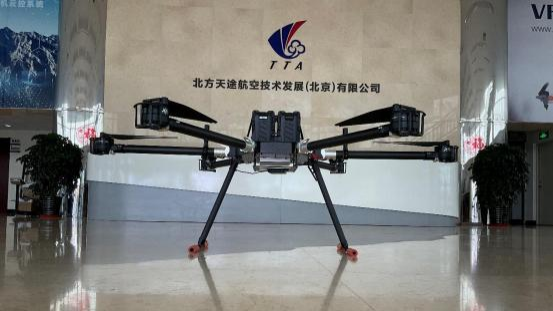

M10 multirotor drone is a new generation intelligent network drone launched by TTA in 2021.

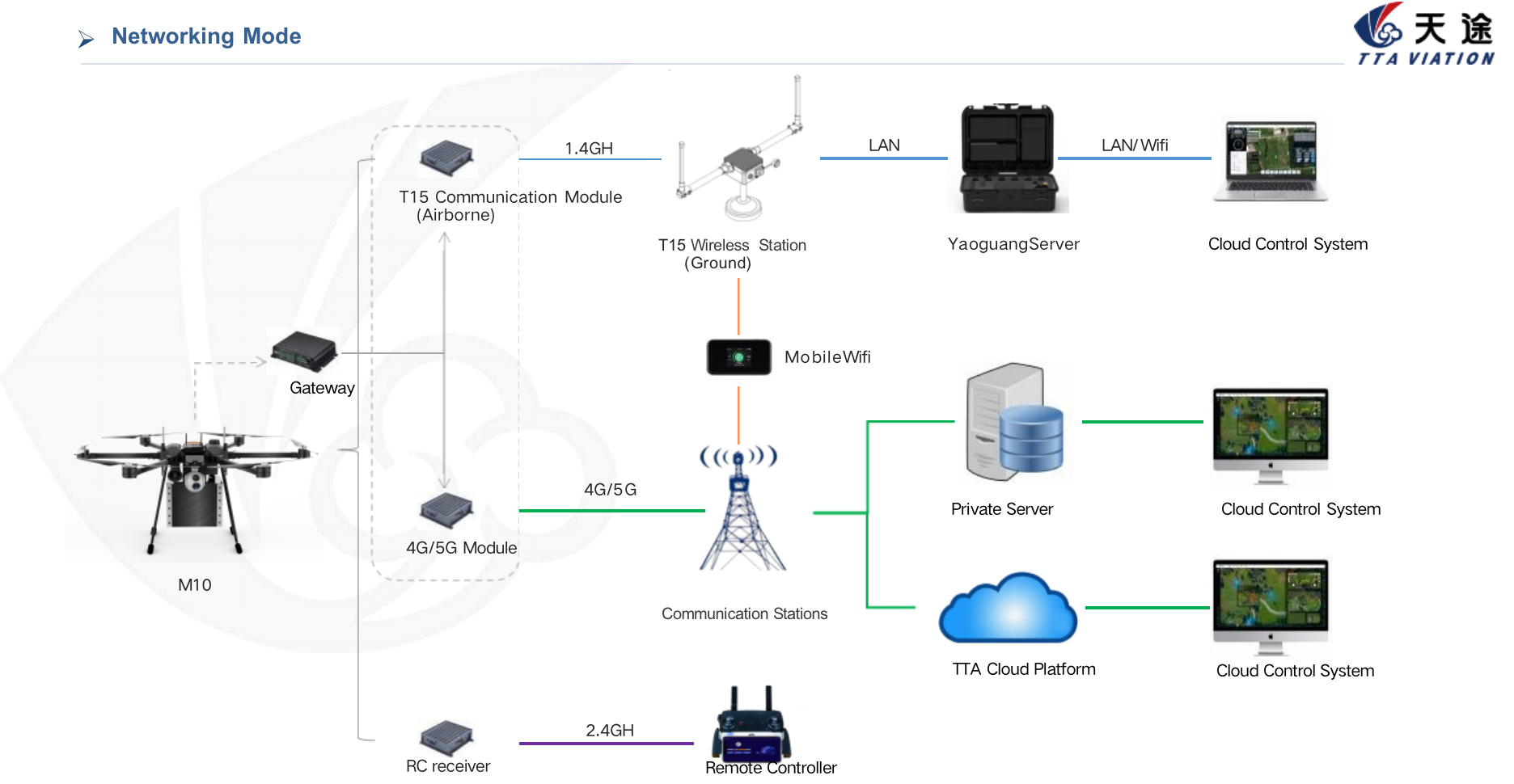

M10 has the characteristic that telemetry and control is not limited by distance, though using 4G/5G network connect with cloud control platform.
M10 has been fully affirmed and widely used in the fields of reconnaissance, delivery, search, rescue, command, surveying and mapping, patrol inspection, and logistics.

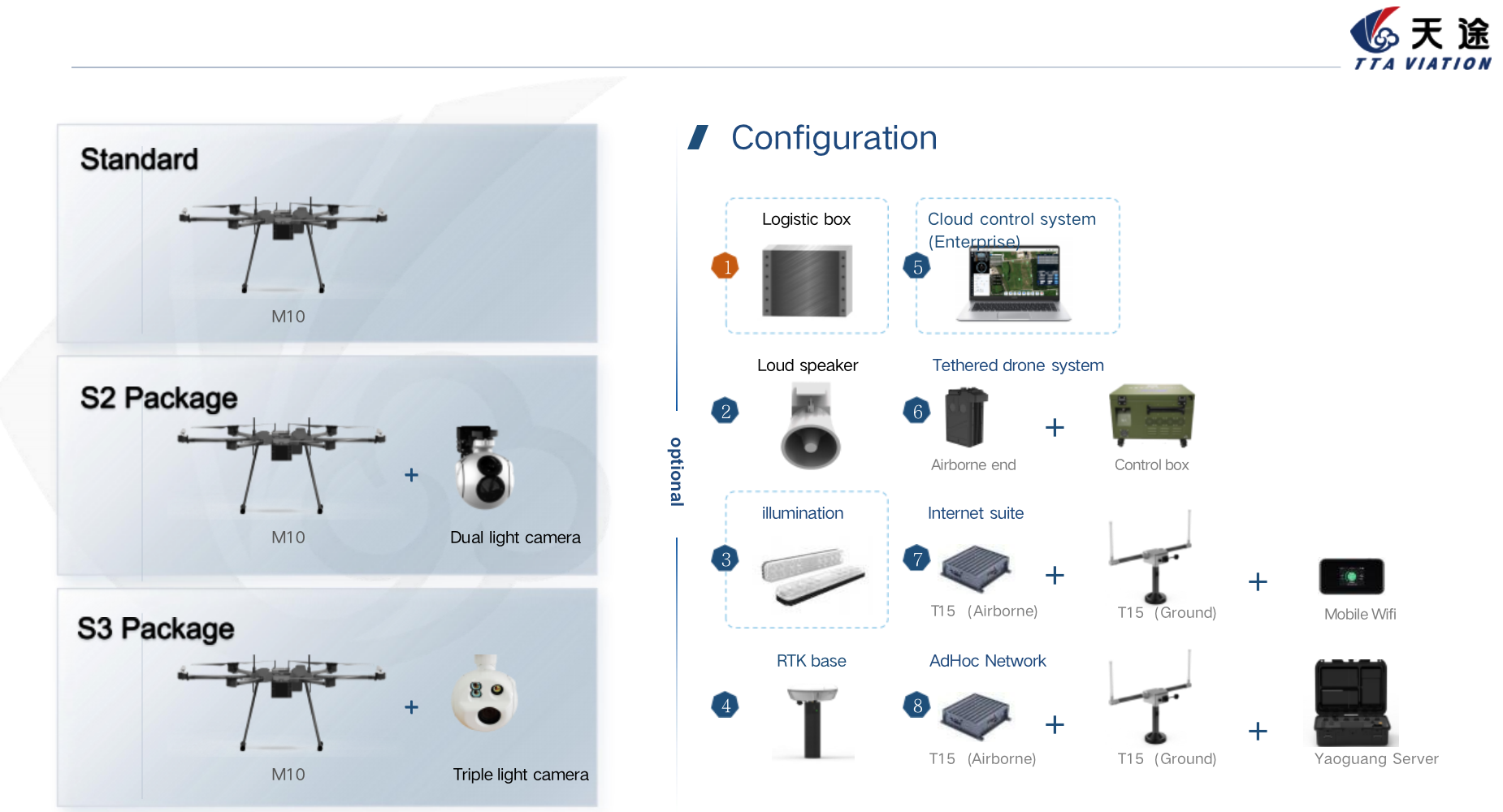

Drone Payload Options
The drone can carry different payloads according to different missions.
Dual light camera
Triple light camera
Drop-off device
High altitude illumination system
High altitude megaphone
Logistic box
Salient features:
Techical Info
Detailed Images
Our Service
| Parameter | |
| Wheelbase | 1615mm |
| Size | 1700*1700*800 mm(unfolded)
700*700*800 mm (folded) |
| Rotor | 6 pcs |
| Weight | 12kg (excluding battery), 25kg (including battery) |
| Maximum take-off weight | 40kg |
| Payload weight | Up to 10kg |
| Flying time | 28 mins with 10kg payload |
| Battery | 12s Lithium battery |
| Working temperature | -10~40℃ |
| Maximum cruise speed | 10m/s |
| Maximum lift speed | 5m/s |
| Maximum tilt angle | 30° |
| Suspension accuracy | ± 0.5m vertical
± 1.5m horizontal |
| Empty payload flight time | 55min |
| Maximum communication
distance |
10km (Point to point), unlimited (4G / 5G) |
| Maximum flight altitude | 5000m |
| Maximum wind resistant | Level 7 |
| Control model | High setting mode, fixed point mode, return mode |
| Emergency control | Pause flight, remote control runaway return, low power alarm,
emergency shut down. Pause flight, remote control runaway return, low power alarm, emergency stop. |
