Vertical take off and landing make the operation of fixed wing much easier.
No environment requirements and don’t need complex auxiliary device for taking off and landing makes outdoor work more simple and convenient.
Techical Info
Detailed Images
Certifications
Our Service
| DIMENTION | Length | 1800mm |
| Wing span | 3050mm | |
| Frame Materials | FRP | |
| Payload | ≤2kg | |
| FLYING | Take off mode | Vertical take off |
| Flying endurance without payload | 1.5h | |
| Cruising Speed | 70-90km/h | |
| RC distance | 1km | |
| Data Link distance | 50km | |
| Landing mode | Vertical landing | |
| Wind Resistance | 10.8m/s | |
| Other Details | Climbing angle | Less than 15 degree |
| Suitable flying height | 80-4000m | |
| Flying mode | Automatic | |
| Payload device | 1.QX5.0 Oblique photography camera | |
| Payload device | 2.SONY RX1RII camera | |
| Payload device | 3.Others |
● Supply switching function between different routes during cruising. User can manage maximally 9 routes at the same time.

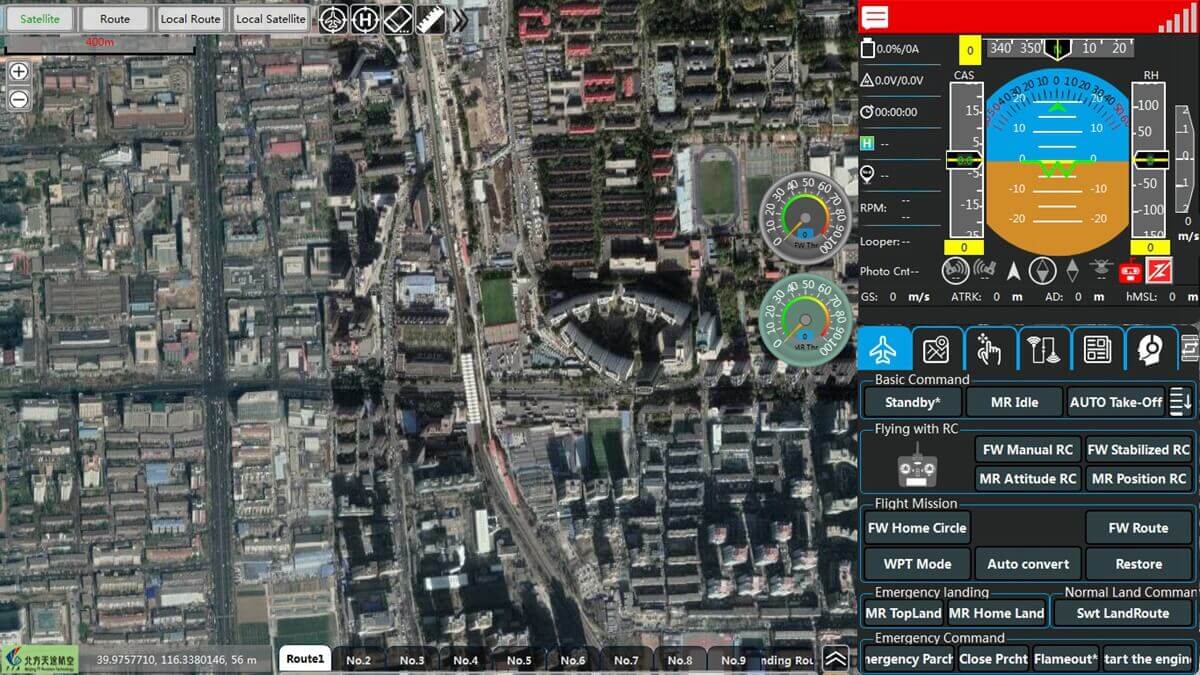

● GCS can monitor real-time flight information.
●5 hours long duration makes it suitable for long distance mapping and monitoring work.
●It suits for various mission devices, including Vertical shooting mapping camera , Oblique photography mapping system, Infrared thermal imaging camera, Visible light camera, Multispectral camera, Hyperspectral camera and video transmitter, etc.
